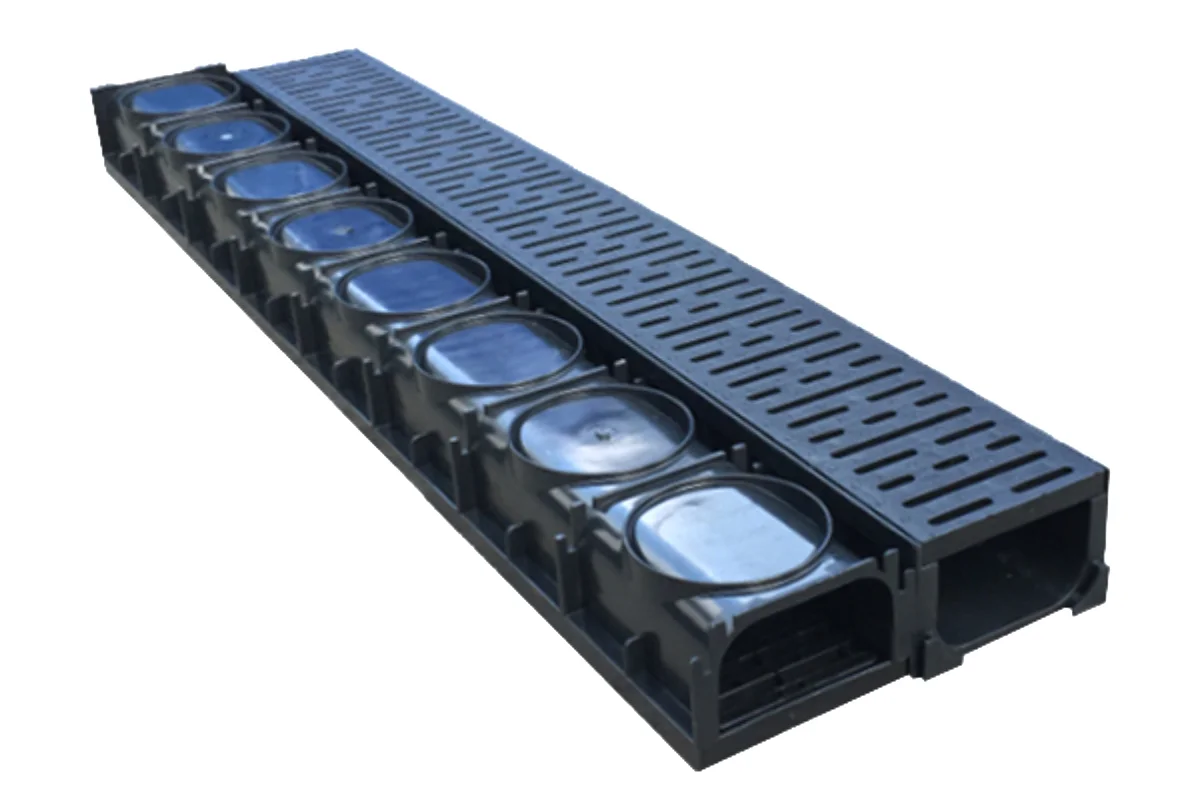

Channel Drain with Plastic Grate – 1000mm (L) × 125mm (W) × 80mm (H)
£7.33 (Exc. 20% VAT)(£8.79 Inc. VAT)Free Delivery
1m plastic channel drain with plastic grate, 125mm wide x 80mm deep. A15 interlocking drainage channel for patios, paths & gardens. TITAN fittings in stock.
1000 in stock
The TP-5001-UK Channel Drain with Plastic Grate is a lightweight, durable drainage solution designed to efficiently manage surface water in residential and commercial areas. Its strong plastic grate ensures smooth water flow while resisting rust and corrosion, making it ideal for driveways, patios, walkways, and garden landscapes. Easy to install and maintain, it offers reliable performance and long-lasting protection against water buildup.
Material: 100% recycled polypropylene
Color: Black
Weight: 1400g
Load Rating: EN1433 – A15
Temperature Stability: -10°c+90°c
Outlet: Connects to 101mm pipe
Dimensions: 1000mm (L) × 125mm (W) × 80mm (H)
1m Channel Drain with Plastic Grate (125 x 80mm): key details
This interlocking channel drain collects surface water from hard landscaping and carries it to your drainage system, stopping puddles and protecting walls and doorways from standing water. Lengths join end to end, so you can build a run to suit your space.
Where to use it
Rated EN Class A15, it is designed for patios, garden paths, courtyards and the edges of paved areas used by pedestrians. For driveways and vehicle areas, use a channel rated B125 or higher.
How to install a channel drain
- Plan the run and the outlet point, and give the run a slight fall towards the outlet.
- Dig a trench about 100mm wider and 100–150mm deeper than the channel.
- Lay a concrete bed, set the channels on it and connect the outlet to your drainage pipe.
- Haunch concrete along both sides, then lay the paving so it finishes 3–5mm above the grate.
- Leave the grates in place while you work so the channels keep their shape.
Frequently asked questions
Can I drive over this channel drain?
No. Class A15 is for pedestrian areas only. Driveways need B125 or higher.
How do I connect it to the drain?
Use a TITAN outlet connector, outlet end cap or inspection box at the low point of the run and connect it to your underground pipe or soakaway.
How many do I need?
Measure the length you want to drain and divide by the channel length (1m). Add end caps, corners and an outlet to finish the run.
