Channel Drain with Brick Slot – 1000mm (L) × 125mm (W) × 140mm (H)

CHANNEL DRAIN WITH BRICK SLOT

Discreet Brick Slot Linear Channel Drain – 1000mm – A15 Load Rating – 100% Recycled Polypropylene

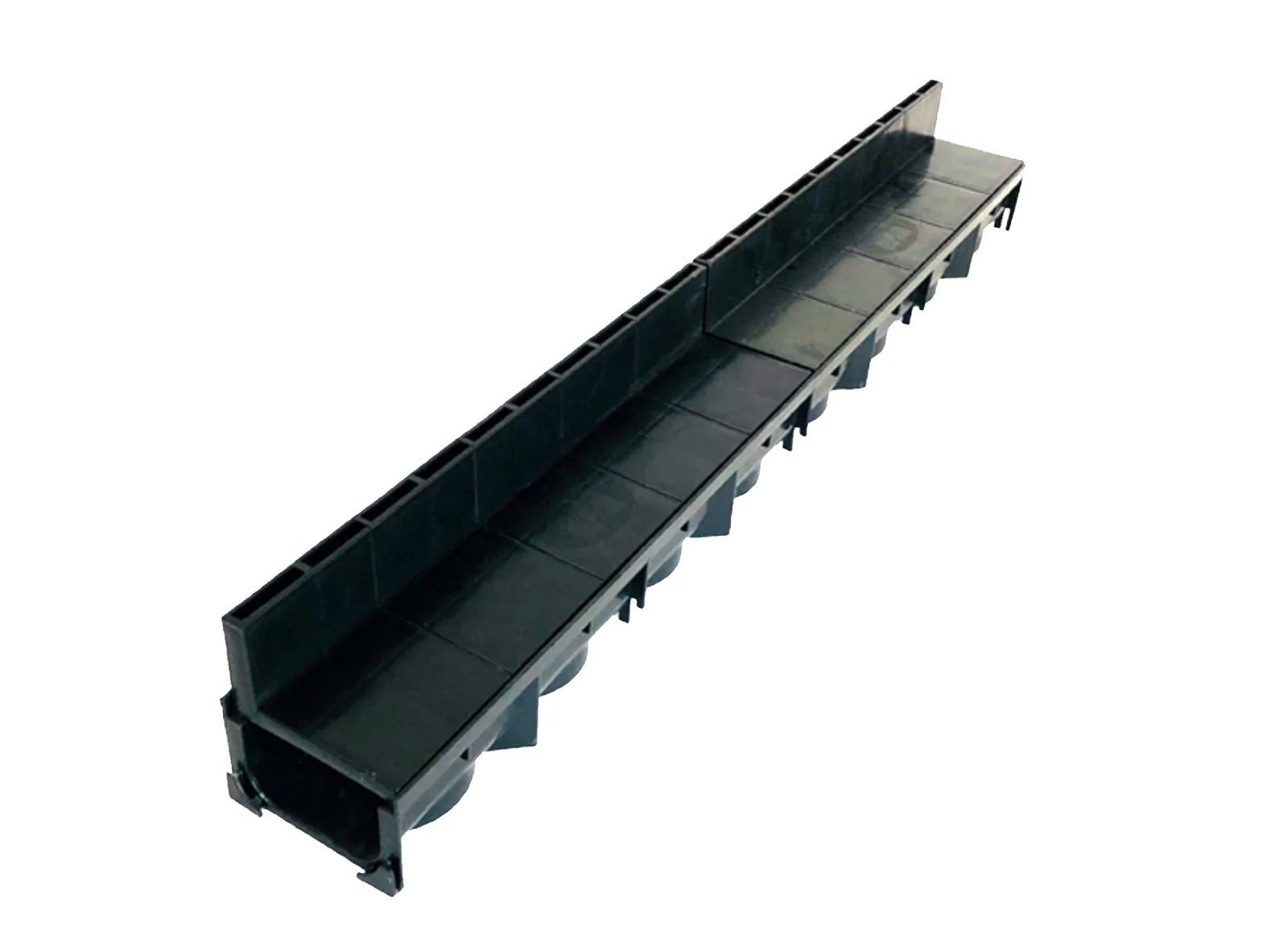

The TITAN TP-5001-L-UK Channel Drain with Brick Slot is a sleek, practical and discreet linear drainage solution designed to integrate neatly into paved, landscaped and pedestrian areas.

Its slim brick slot design allows surface water to enter the drainage channel efficiently while keeping the majority of the drainage system concealed below the finished surface. This creates a clean and contemporary appearance that is particularly suited to patios, pathways, paved areas and landscaping projects where conventional open drainage grates may be visually intrusive.

Manufactured from 100% recycled polypropylene, the TP-5001-L-UK combines lightweight construction with durability, ease of handling and reliable surface water management.

KEY FEATURES

✓ DISCREET BRICK SLOT DESIGN
The narrow slot provides an attractive and unobtrusive drainage solution, allowing the channel to blend neatly with surrounding paving and landscaped surfaces.

✓ 100% RECYCLED POLYPROPYLENE
Manufactured from recycled polypropylene, providing a lightweight, durable and practical drainage solution for modern construction and landscaping projects.

✓ A15 LOAD RATING
Designed for A15 light-duty applications, making it suitable for appropriate pedestrian, patio, garden and landscaped areas when correctly installed.

✓ EFFECTIVE SURFACE WATER MANAGEMENT
The linear channel collects surface water along its length and directs it towards the connected drainage system, helping reduce unwanted standing water around paved areas.

✓ 1 METRE CHANNEL LENGTH
Each channel measures 1000mm long, allowing multiple units to be connected together to create longer continuous drainage runs.

✓ LIGHTWEIGHT CONSTRUCTION
At approximately 1.52 kg per unit, the polypropylene construction makes the channel easy to handle, position and install.

✓ 101MM OUTLET CONNECTION
Designed to connect to a 101mm pipe, allowing straightforward integration with a suitable drainage system.

✓ EXCELLENT TEMPERATURE STABILITY
Suitable for operating temperatures ranging from approximately -10°C to +90°C.

PRODUCT SPECIFICATION

• Brand: TITAN
• Model: TP-5001-L-UK
• Product Type: Linear Channel Drain with Brick Slot
• Material: 100% Recycled Polypropylene
• Colour: Black
• Length: 1000mm
• Width: 125mm
• Height: 140mm
• Weight: Approx. 1520g / 1.52kg
• Load Rating: A15
• Temperature Stability: -10°C to +90°C
• Outlet Connection: Suitable for connection to 101mm pipe
• Drainage Type: Surface Water / Linear Drainage

DIMENSIONS

1000mm (L) × 125mm (W) × 140mm (H)

The convenient 1-metre modular length makes planning and installing longer drainage runs simple and efficient.

IDEAL FOR

The TITAN TP-5001-L-UK Brick Slot Channel Drain is suitable for a wide variety of landscaping and light-duty drainage applications, including:

• Patios
• Garden pathways
• Walkways
• Paved areas
• Courtyards
• Landscaping projects
• Pedestrian areas
• Residential developments
• Building entrances
• Commercial landscaping
• Areas where discreet linear drainage is preferred

DISCREET BRICK SLOT APPEARANCE

One of the main advantages of the TP-5001-L-UK is its minimal visible profile.

Unlike traditional channel drains with wide exposed gratings, the brick slot design leaves only a narrow drainage opening visible at surface level. This allows paving to be installed neatly alongside the drainage slot, helping maintain the appearance of the surrounding landscape.

It is an excellent choice for projects where effective drainage and attractive paving design are equally important.

LIGHTWEIGHT & DURABLE CONSTRUCTION

Manufactured from 100% recycled polypropylene, the channel offers an excellent combination of durability and lightweight handling.

At approximately 1.52kg per 1-metre section, the channel can be easily handled and positioned during installation while providing a durable drainage solution once correctly installed and supported.

MODULAR 1-METRE DESIGN

The TP-5001-L-UK is supplied in convenient 1000mm sections, allowing multiple channels to be installed together to create the required drainage length.

This makes the system suitable for both smaller residential installations and longer landscaping drainage projects.

WHY CHOOSE A BRICK SLOT CHANNEL DRAIN?

Brick slot drainage provides a modern alternative to conventional grated channel drainage.

Key benefits include:

✓ Minimal Visible Drainage Opening
✓ Clean & Contemporary Appearance
✓ Effective Linear Surface Water Collection
✓ Integrates Neatly with Paving
✓ Lightweight & Easy to Handle
✓ Suitable for Residential & Landscaping Projects
✓ Modular Design for Longer Drainage Runs

WHY CHOOSE TITAN?

TITAN Drainage Solutions UK Ltd specialises in premium drainage products for builders, landscapers, paving professionals and builders’ merchants.

The TP-5001-L-UK has been designed to provide a practical combination of:

✓ Discreet Brick Slot Design
✓ 100% Recycled Polypropylene Construction
✓ Lightweight Handling
✓ Efficient Surface Water Drainage
✓ Modular 1-Metre Sections
✓ Simple Connection to Drainage Pipework
✓ Professional Finished Appearance

IMPORTANT INSTALLATION INFORMATION

Please check the dimensions, outlet connection and required load classification before ordering.

The performance and load capability of a channel drainage system depend on correct installation, appropriate bedding and adequate surrounding structural support.

The A15 classification is intended for appropriate light-duty and pedestrian applications. Please ensure that the selected drainage system and installation method are suitable for the expected traffic and loading conditions.
