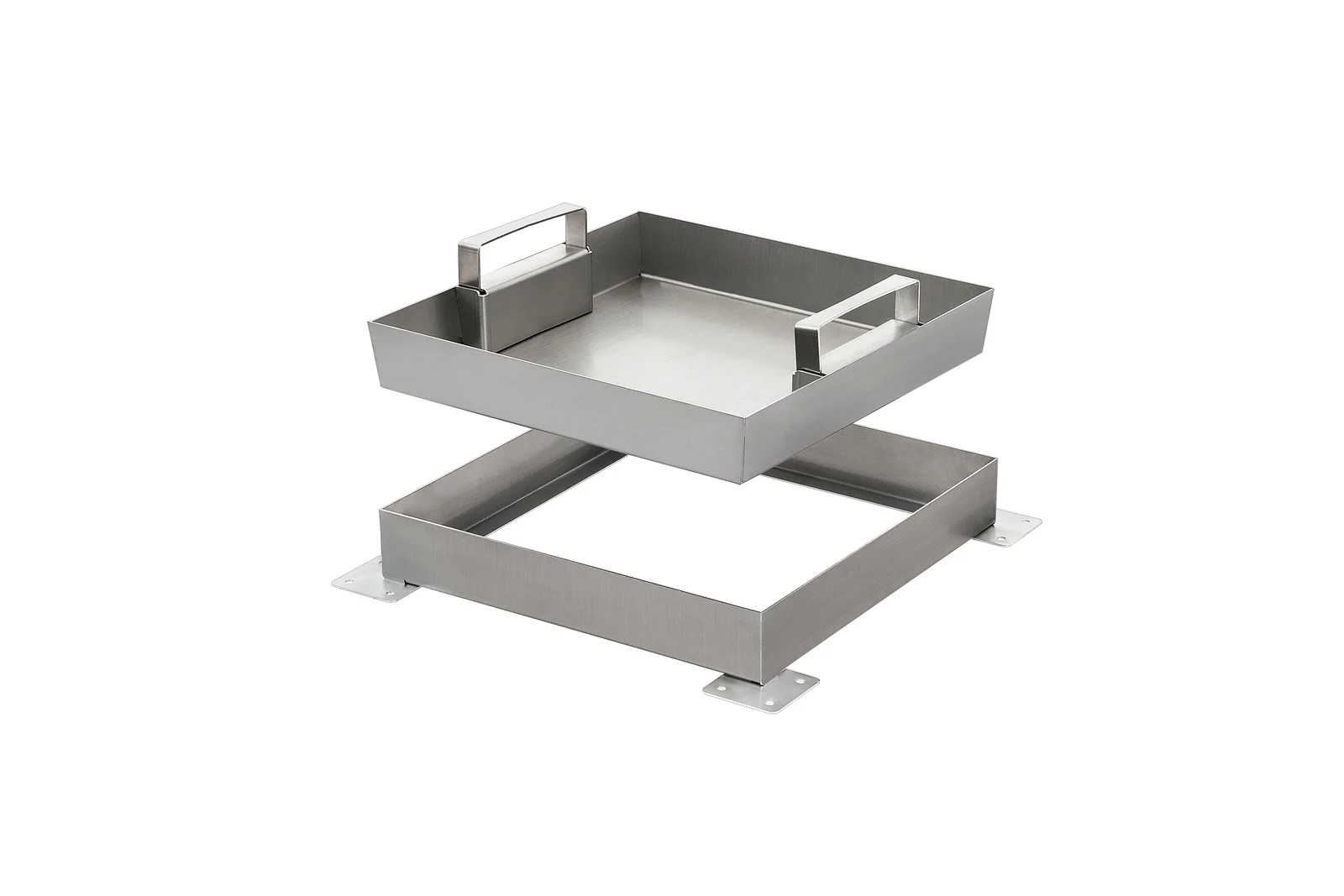

Stainless Steel Recessed Screeding Manhole Cover With Handle – 600 mm (L), 450 mm (W), 50 mm (H), 2.0 mm (T)

The TD-M Stainless Steel Polished manhole cover, model TD-60x45x5 PSM, is a high-quality product designed for durability and aesthetic appeal. It is manufactured using stainless steel grades such as AISI 304, 304L, 316, or 316L, ensuring corrosion resistance and longevity. The polished finish provides a mirror or brush finish that is both visually appealing and functional.

Material: 304 Stainless Steel

Color: Silver

Weight: 8.8 kg

Temperature Range: -50°C to 100°C

Load Rating: EN1433 – A15

Dimensions:

600 mm (L)

450 mm (W)

50 mm (H)

2.0 mm (T)

600 x 450 x 50mm Stainless Steel Recessed Screed Cover with Handle: key details

This 600 x 450mm recessed manhole cover is made from 304 stainless steel with a 50mm deep tray, so you can fill it with tiles, thin paving or screed and make the cover blend into the floor around it. 304 stainless steel resists rust and staining, so it suits wet areas, gardens and coastal properties. A built-in handle makes it easy to lift the tray for access.

Where to use it

Rated EN124 Class A15 (15kN), this cover is designed for pedestrian areas: patios, garden paths, courtyards, kitchens, utility rooms and other indoor floors. It is not designed for vehicles.

How to fit a recessed manhole cover

1. Check the cover and frame size against your chamber opening before you start.
2. Bed the frame on a full bed of mortar so its top edge sits flush with the finished surface, and check it is level in both directions.
3. Lift the tray out and fill it with tiles, thin paving or screed, bedded on mortar or screed so the infill sits flush with the frame.
4. Grout or point the joints to match the surrounding surface, keeping the lifting points clear.
5. Let the mortar cure fully before the cover is walked on.

Frequently asked questions

What size manhole cover do I need?
Measure the opening of your inspection chamber and compare it with the 600 x 450mm size above. The frame needs a solid bed of mortar all round, so check there is room for it on the chamber walls.

Can I drive over this manhole cover?
No. EN124 Class A15 covers are tested to 15kN and are intended for areas used only by pedestrians and cyclists. For driveways or any vehicle traffic, use a cover rated B125 or higher.

What can I put in a 50mm recessed tray?
The 50mm tray suits tiles, thin paving or screed. Allow for the bedding layer under the infill so it finishes flush with the frame.

Will a stainless steel cover rust?
Grade 304 stainless steel is highly resistant to rust in normal outdoor and indoor conditions. Wipe off cement and grout residue after fitting to keep the frame clean.
